MBP-500M｜Packaging machines

Medical Blister

MBP-500MMedical Blister

Here is Medical Blister Packaging Machine which achieves brand switching within 60 minutes.

Eco-Friendly, Energy & Resource Saving Type Blister Packaging Machine

Reducing CO2 by Energy-Saving Type Heater

Heat-Loss Reducing Heater is adopted
Advanced heat conductivity by thin-model mica heater and heat-loss reducing by radiant shield can achieve more than 300Kg CO2 reduction efficiently per year.

Scrap of packaging material is minimized

Variable Structure for Film Width and Feeding Stroke
Since film width is changeable and feeding stroke is adjustable, suitable trimming pattern can be selected as the basis for product sizes to reduce cost without making useless scrap.

Minimizing Product Loss

Lifting Function of Sealing Heater
Sealing heaters shall be lifted to prevent products from damaging by high temperature when the machine stops. And then, product loss can be minimized.

Easy Recycling

Scrap Automatic Separation(Option)
Scraps of lid film and web film shall be separated and collected at scrap collect working part. Up to now,these scraps ware industrial wastes.
Separation and collection can achieve recycling.

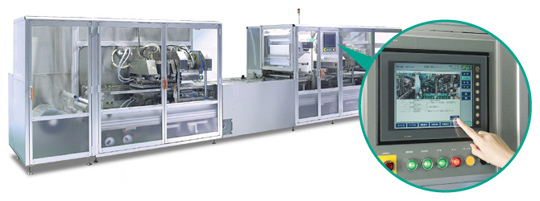

Simple Operation with Navigation Function

Even beginner can operate the machine because touch panel style monitor and instruction with navigation style are adopted.

Brands can be switched within 60 minutes!

Forming dies are easily detachable by exclusive lifter
All the forming dies are detachable at the machine front side. Moreover, using exclusive lifter, forming dies can be switched efficiently.

One-touch clamping device (Option)
Forming dies can be locked and released quickly by one-touch clamping device.

Matching for Wide Range of Items

Both hard film and soft film can be used (H Type)
Only switching forming dies can use both hard film and soft film.

Stable Heat Sealing

Strong Toggle Mechanism
Approx. 10t press power prevents uneven sealing and non-sealing.

Specification

Features
Production capacity, in using soft film	30 shots / min（MAX）
Production capacity, in using hard film	20 shots / min（MAX）
Number of alignment, width direction	Column 10　（MAX）
Number of alignment, feeding direction	Column 1

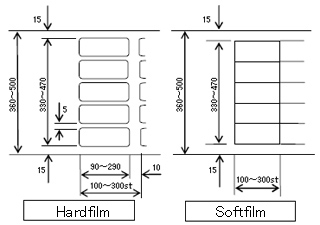

Trim Size
Applicable web packaging material	PP, A-PET, PE, Other PVC compound film(70-700um)
Applicable lid packaging material	Resin (PET/PE), sterilized paper, TYVEK ®
Web film width	360～500mm
Web depth	50mm（MAX）
Lid film width	Web film width - 2mm
Power supply	AC200V3φ 50/60Hz Soft film exclusive use : Approx. 30kVA (Depends on specifications) Hard film exclusive use : Approx. 50kVA (Depends on specifications)
Compressed air	0.5Mpa or more. 2300NL/min. (depends on specifications）
Cooling water	20L/min. (normal water supply pressure 0.1-0.15Mpa)
Weight	About 6,000kg
